Water level Controller Circuit PCB HERO Circuit Diagram It uses readily-available, low-cost components, and is easy to build and install on the over-head tank (OHT) to prevent wastage of water. Fig. 1: Simple automatic water level controller. The circuit works off a 12V battery or 230V AC mains using a 12V adaptor. Here is a simple automatic water-level controller for overhead tanks that switches on/off the pump motor when water in the tank goes below/above the minimum/maximum level. The water level is sensed by two floats to operate the switches for controlling the pump motor. Previously we designed the simple automatic water pump controller circuit. But I have to control the water level in the tank is fixed, is water must not out or overflow, which is a waste of time look at the pump. I have the ideal to create this automatic water pump controller project. Main ideas. When the water a full tank. This circuit controls the pump stopped working. Then we use the water out.

Pin#2 is placed at the bottom of the water tank to detect when the water is too low. If the water covers the sensor (a 2-pin plug), pin#2 stays at the full voltage level, keeping pin#3 inactive. When the water level falls and uncovers the sensor, pin#2 loses its voltage. 1) Simple Automatic Water Level Controller Using Transistors. Please find the attached circuit for a very simple and cheap water level controller. This design is only a basic portion of my own marketed product having unsafe voltage cutoff, dry run cut off and LED & alarm indications and overall protection.

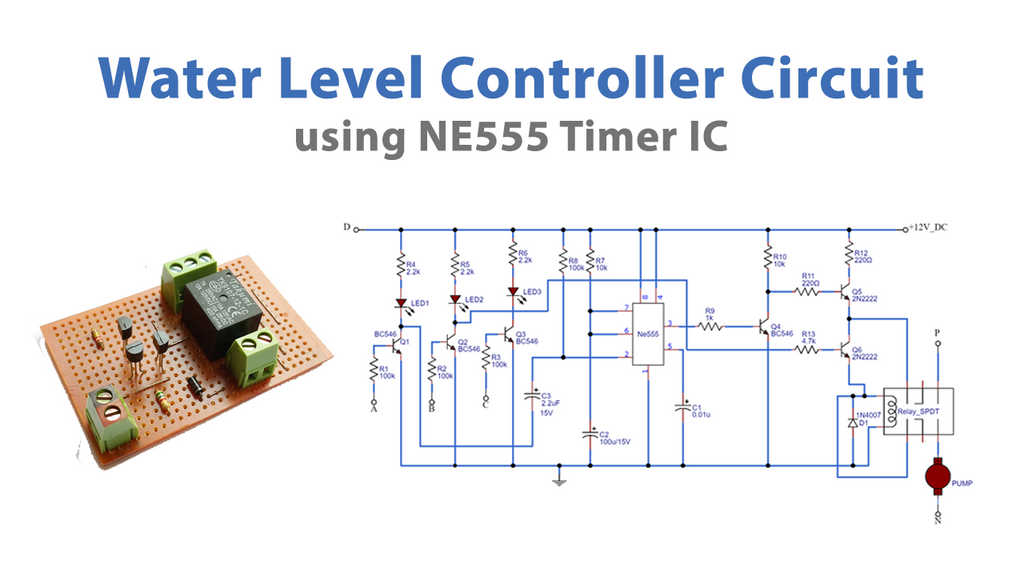

IC 555 Automatic water Level Controller Circuit Circuit Diagram

In this video I am going to show you how to make an Automated Water pump control system using several electronic components including PCB Etching, Drilling a As the name depicts, a water level controller is an automatic device used to monitor a particular level of water (for example in an overhead tank) and restrict it from exceeding the limit. The simple circuit design for such a controller shown here may be easily built and installed and may relieve you from the headache of manually operating the

The Design. The proposed water level controller circuit using a float switch is basically a semi-automatic system where the pump is started manually by press of a button, once the water level reaches the brim of the tank, the operation is switched of automatically by means of a float switch. How to Make Fully Automatic Water Pump Controller | Water Level Indicator and Pump ControllerIn this video, you will learn how to make a water pump controlle
