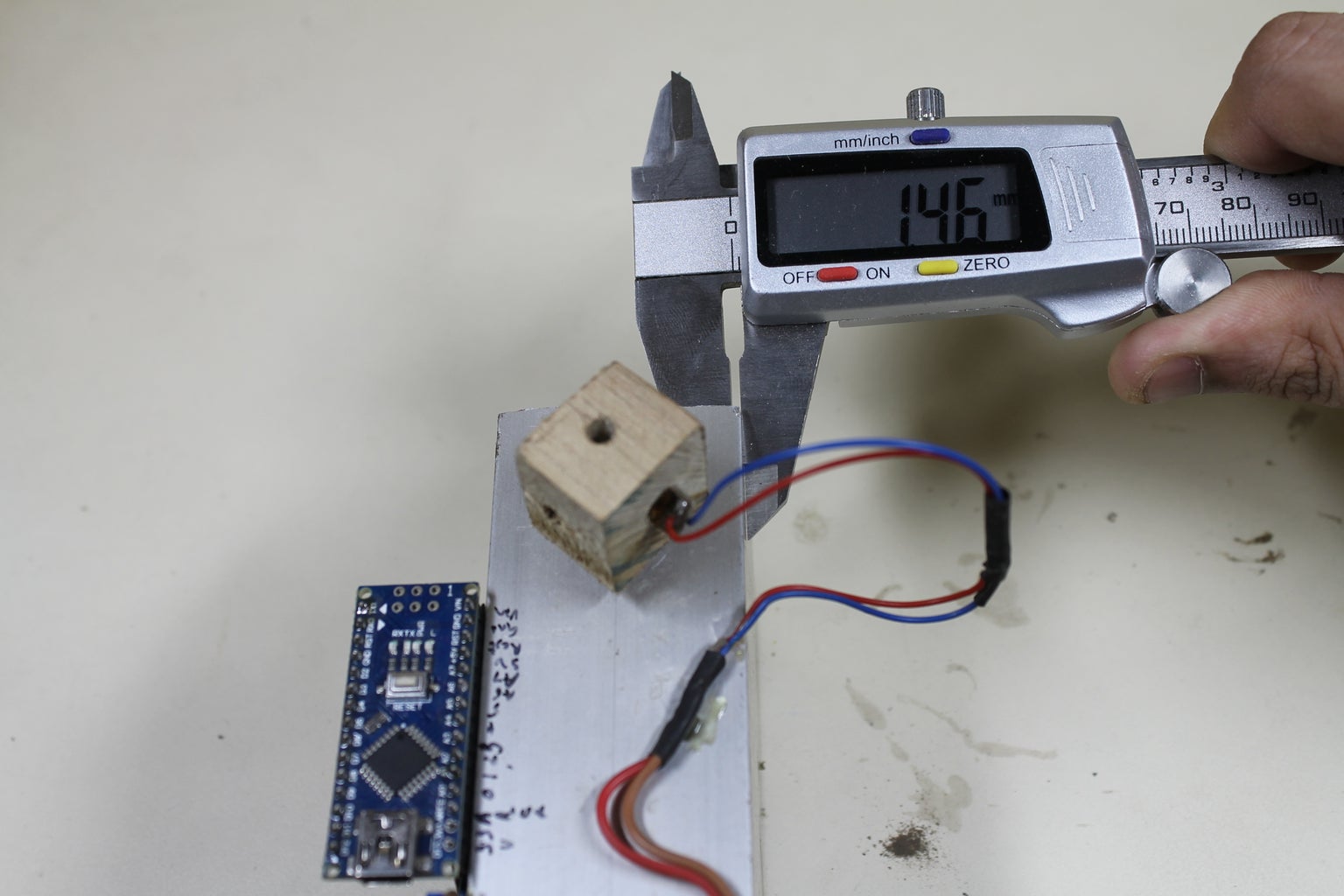

How Does Laser Distance Measurement Work Circuit Diagram Basic Setup and Calibration of Laser Distance Sensors. Setting up a laser distance sensor properly ensures accurate measurements and optimal performance. Here's a step-by-step guide for basic setup and calibration: Mount the Sensor Securely: Choose a stable mounting position that offers a clear line of sight to the target. Laser distance sensors - also called laser displacement sensors - may work in several different ways. Comon methods include time-of-flight (in which the sensor derives distance from the time it takes light to reflect) and triangulation (in which distance measurements are achieved by analyzing the angle of the reflected laser beam). Measuring Distance With Lasers: In this project I made a simple device which can measure the distance between itself and any physical object. The device works best at a distance of around 2-4 meters and is fairly accurate.
In the image below, you can see the result of the distance measurement in my apartment. Example of the distance measurements (Image by: Author) Conclusion. In this article, the usage and basic setup for measuring the distance using a Laser sensor are shown. You can use this kind of sensors for many projects like alarm systems, parking sensors
Measuring Distance With Lasers : 5 Steps Circuit Diagram
With non-contact measurement, laser sensors do not experience any mechanical wear or contact with the target. Further, the target or object can be moving during the inspection, such as during tire run out measurement or measuring parts on a high volume assembly line. Non-contact measurement also increases sensor use on a wider variety of materials. How to Choose the Right Laser Distance Measure. When selecting a laser distance measure, consider the following factors: Measuring range: Choose a device with a measuring range that suits your needs. For most DIY projects, a range of up to 100 feet should be sufficient, while professionals may require devices with ranges of 300 feet or more.
Example of the distance measurements (Image by: Author) Conclusion. In this article, the usage and basic setup for measuring the distance using a laser sensor are shown. Stable Positioning: To avoid errors caused by movement, especially for long-distance measurements, use a tripod or place the sensor on a stable platform. How Does a Laser Sensor Calculate Distance? Laser distance sensors use the time-of-flight (ToF) method to calculate distances. Here's a simple breakdown:
Measuring Distance with Laser Sensor Technology Circuit Diagram
The VL53L0X sensor is a laser rangefinder. First, the sensor sends a laser pulse, and the distance from object to the sensor is estimated by measuring the travel time of the laser pulse. Due to the very high speed of light, this sensor is not used in applications less than a millimeter. This module can measure a maximum distance of 2 meters.
